Pure Steam Sample Collector
DSF-210 Air-cooled Design
No need cooling water on site, more convenient! GMP Compliance
The pure steam coil is made of 316L, with a fully hygienic design, which meets the requirements of GMP for pharmaceutical equipment.
Pure Steam Sample Collector is the air-cooled sampler mainly used for the condensation sampling of pure steam. It cools the pure steam in the stainless steel conduit with cold air to condense into water. By inspecting the quality of the sampling water, it is verification whether the pure steam meets the testing standards. DSF-200 Pure Steam Sampler is suitable for pure steam sampling in biological and pharmaceutical pure steam sterilization systems. The instrument meets the GMP requirements, and the components in contact with pure steam are made of 316L stainless steel, which meets the GMP requirements for pharmaceutical utensils. After sampling, the condensed water is analyzed for microorganisms, conductivity, TOC, and endotoxins. Pure Steam Sampler is designed for efficient pure steam condensation. stainless steel surface and fully hygienic design meet GMP requirements for pharmaceutical industry!
Portable design Small in size, practical and portable Equipped with a pull handle and roller wheels for easy transfer of samples between different points Pure air cooling design principle,No need to add cooling liquid Optional special 316 stainless steel steam connection hose Optional adjustable bracket of sampling outlet for fixing the sampling container
Following requirements for pure steam of the Chinese<Pharmaceutical GMP Inspection Guide>
1,Microbial Limit, the same as inject able water
2,TOC, the same as injectable water
3, Conductivity, the same as inject-able water
4,Endotoxin,0.25EU/ml(if used for inject ablepreparations
|
|

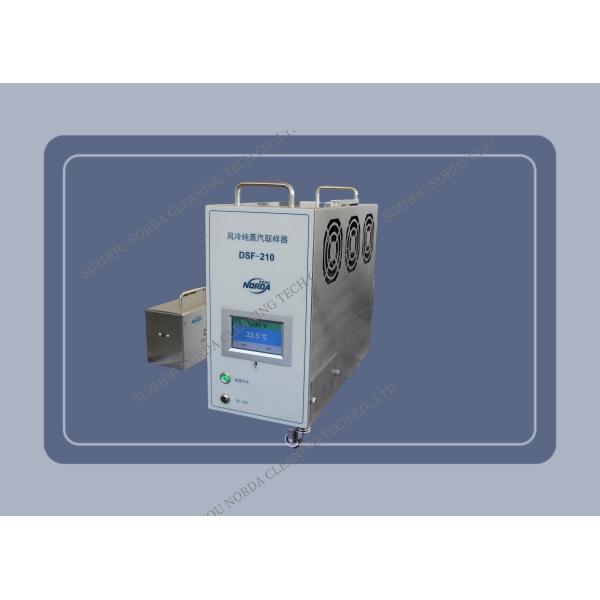

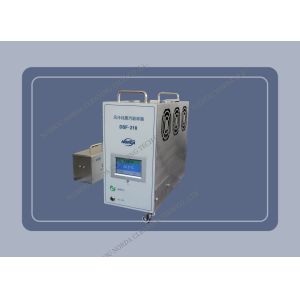

Portable Steam Air Sampler Images
|
